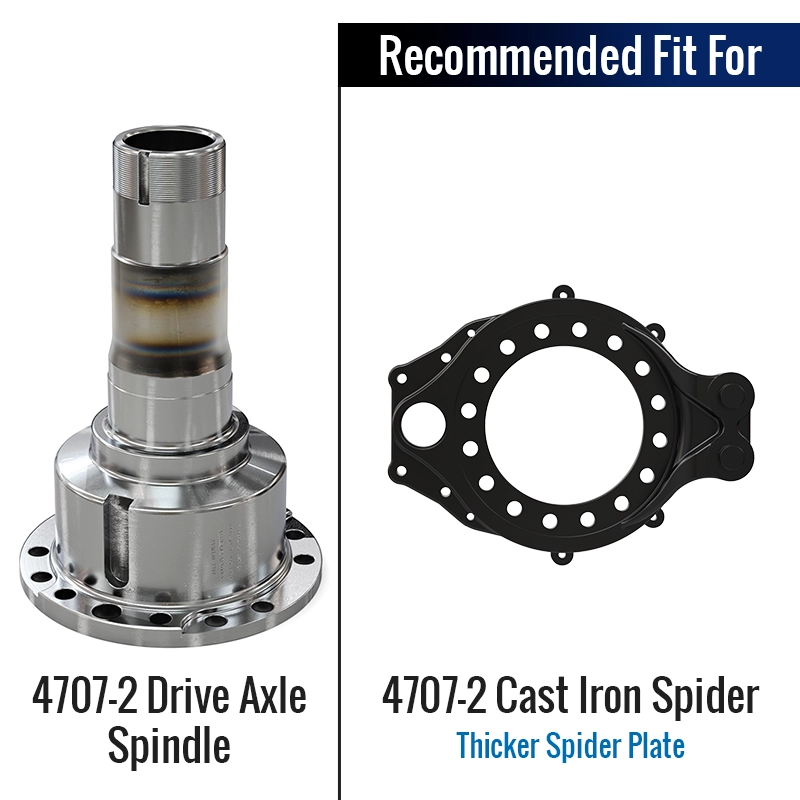

4707-2 Drive Axle Spindle
The 4707-2 drive axle spindle is part of our series of spindles designed for highway and dump truck applications and is manufactured specifically to fit trucks with a 4707-2 brake spider. The 4707-2 features our patented bolt-on design, industry standard 1040 unalloyed steel construction, and has undergone our unique induction heat treatment process for increased durability.
Every highway and dump truck spindle is inspected, packed with care, and ships from our warehouse complete with the necessary items you need for a fast and easy installation. Included in the box are the spindle, sleeve, gasket, ABS mount and bolts.
Tools required for installation are not included. For a complete list of required tools please see the “Required Tools” section below.
| Type: | Drive axle spindle |
| Recommended Fit For: | 4707-2 brake spider |
| Heat Treatment: | Yes |
| Weight: | 48 lbs |
| Warranty: | 1 Year Limited Warranty |
| Compatible Parts: | Bearing Set 401 (572/580) cup and bearing, Bearing Set 403 (594A – 592A), Set 430 (mostly used with pre-set hub), Set 429 (mostly used with pre-set hub), National seal 37003A, Pro-Torque Lock nut 449-4973 |
In stock
Description
Our highway and dump truck spindles are a true testament to the grit and rugged durability of our products. Built for the long haul, our spindles have kept 80-ton dump trucks rolling strong across North America, mile after mile, for over a decade of relentless service.
Required Tools
Having the right tools and equipment is key to a successful installation. This list covers essential equipment that most shops already have, but we recommend taking a moment to ensure everything is on hand before beginning.
Safety Equipment
- Safety glasses
- Ear plugs
- Welding helmet and gloves
- Face shield
Hand Tools
- Torque wrench
- 2 vise grips
- Sledge hammer
- Chipping hammer
- 21 mm chrome socket, 1/2” drive
- 15/16” wrench
- 15/16” ratchet, 1/2” drive
Power Tools & Accessories
- 1/2” impact wrench
- Pencil grinder
- Air blow gun
- 5” grinder with wire wheel, cutting and grinding disks
- MIG or stick welder
- 7018 welding rods
- Shop fan
Specialized Tools
- Stemco Seal Driver with tube
- Acetylene and oxygen tank with cutting and heating torch
Lubricants, Fluids, & Paints
- Red-Tac EP2 Grease
- Cutting fluid
- Brake cleaner
- Black rust paint
Additional Tools Available in Our Store
Forged from a block of unalloyed 1040 steel, the 4707-2 spindle undergoes multiple stages of precision machining to ensure a premium product. Our reputation depends not only on the precision of our spindles, but also on their durability. That’s why we go beyond our competitors, delivering unmatched strength through our unique heat treatment process. The bearing areas of the 4707-2 drive axle spindle receive focused induction heating, while the entire spindle undergoes a comprehensive hardening treatment that sets our spindles apart.
Spindle Maintenance
Do You Have a Problematic Spindle?
Wheel bearing maintenance is a crucial yet often overlooked aspect of commercial vehicle upkeep. Many truck owners are unaware of the importance of regular wheel bearing checks and lubrication changes. If neglected, this can lead to damaged spindles and dangerous situations as break pads can become compromised by leaking bearing lubricants and grease.
When inspecting your truck for signs of trouble, listen for unusual noises like whirring, clicking, or clunking, particularly while turning. Unusual vibrations can also be an indicator as well as visual signs like bearing grease leaking from the boot. A quick visual inspection of the inner side of the wheel’s rim will help identify any issues.
Will this fit my truck?
Please verify your spider plate type
Still not sure if this will fit your truck?
Simply identify your truck’s brake spider model and select the corresponding spindle model. Here are a list of parts compatible with this spindle:
- Bearing Set 401 (572/580) cup and bearing
- Bearing Set 403 (594A – 592A)
- Set 430 (mostly used with pre-set hub)
- Set 429 (mostly used with pre-set hub)
- National seal 37003A
- Pro-Torque Lock nut 449-4973
If you’re still in doubt, contact us and we’ll help you find the right product.
