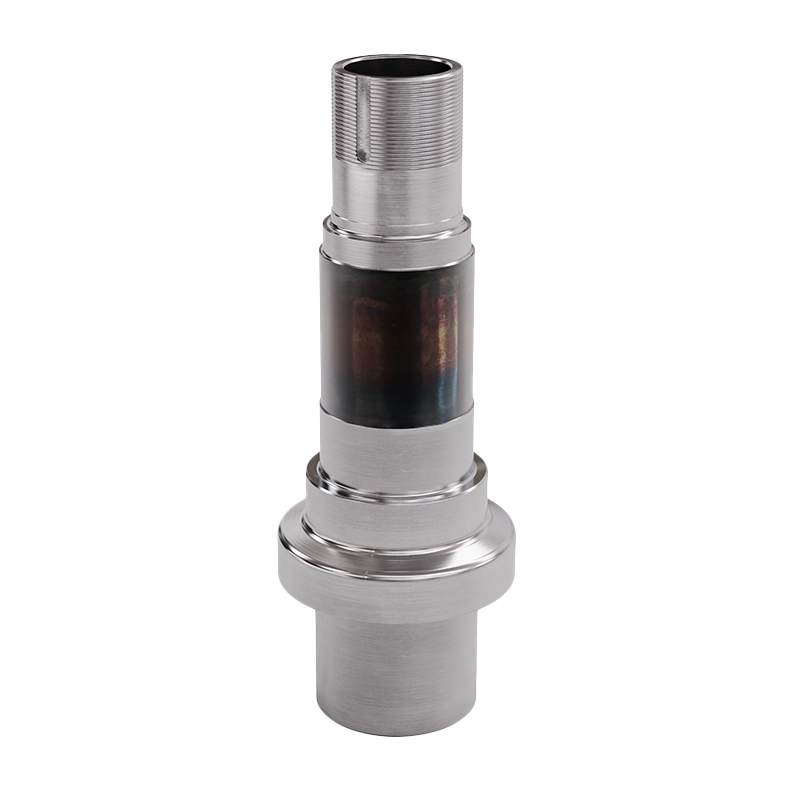

Meritor Straight Truck Spindle
Our Meritor Straight Truck replacement spindle is crafted to meet the unrelenting demands of straight truck applications. Built with high-grade, industry-standard 1040 unalloyed steel, it offers unmatched strength and durability. This straight truck spindle benefits from a unique induction heat treatment process, ensuring superior resilience under heavy load conditions.
Meritor axles are the industry standard in heavy-duty trucking, accounting for approximately 70% of Class 8 truck axles in North America. These axles are widely used in Freightliner, Western Star, Volvo, Mack, Kenworth, and Peterbilt trucks, making our Meritor-compatible spindle an essential repair solution for fleet owners and independent operators alike.

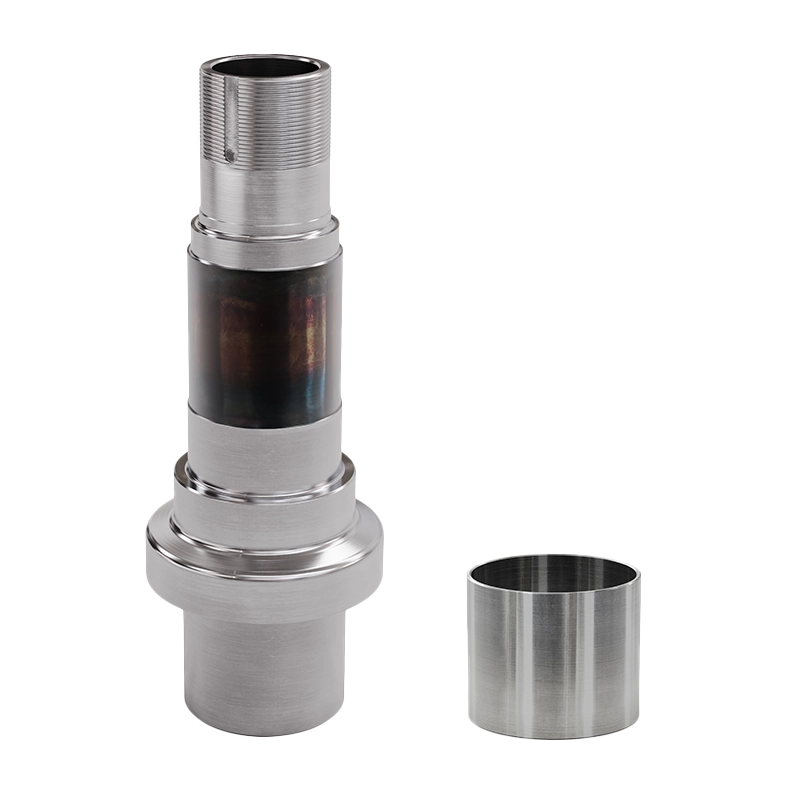

Your package includes the spindle and a sleeve. Please note that the tools required for installation are not included. For a complete list of the required tools, refer to the “Required Tools” section below.
In stock
| Type: | Straight truck spindle |
| Recommended Fit For: | Meritor axles |
| Heat Treatment: | Yes |
| Weight: | 32 lbs |
| Warranty: | 1 Year Limited Warranty |
| Compatible Parts: | Outer bearing set 408 and Bearing 39590/ race 39520, Inner bearing 411 and Bearing 47686/ race 47620, National seal 370023A, Pro-Torque Lock nut 449-4974 |
Description
Meritor axles are known for their durability and longevity. The average lifespan of a Meritor axle, when properly maintained, can range from 500,000 to over 1,000,000 miles! However, their lifespan can be cut short by improper maintenance, harsh road conditions, and overloading that can lead to broken or damaged spindles.
Required Tools
Having the right tools and equipment is key to a successful installation. This list covers essential equipment that most shops already have, but we recommend taking a moment to ensure everything is on hand before beginning.
Safety Equipment
- Safety glasses
- Ear plugs
- Welding helmet and gloves
- Face shield
Hand Tools
- 2 vise grips
- Sledge hammer
- Chipping hammer
- Digital Caliper
- Measuring Tape and Ruler
Power Tools & Accessories
- Pencil grinder
- Air blow gun
- 5” grinder with wire wheel, cutting and grinding disks
- MIG or stick welder
- 7018 welding rods
- Shop fan
Specialized Tools
- Stemco Seal Driver with tube
- Acetylene and oxygen tanks
Lubricants, Fluids, & Paints
- Red-Tac EP2 Grease
- Black rust paint
The average straight truck axle can cost $3,000 – $8,000 plus installation fees, and can take 6-10 hours for an experienced technician to install. That is a significant investment of resources, and while some trucks are worth it, there is a better way. Our meritor straight truck spindles save you a lot of both time and money and are engineered to out-perform the original parts.
Unlike a full axle replacement, our Meritor Straight Truck Replacement Spindles are designed for quick and efficient installation, typically taking only 90 minutes instead of an entire day. This means you save on parts and labor costs, getting your truck back on the road faster to maximize productivity and your investment.
Is this the right spindle for the job?
Not sure if this will fit your truck?
This Straight Truck Replacement Spindle is designed to fit the Meritor axles. Here is a list of parts compatible with this spindle:
- Outer bearing set 408 and Bearing 39590/ race 39520
- Inner bearing 411 and Bearing 47686/ race 47620
- National seal 370023A
- Pro-Torque Lock nut 449-4974
If you’re still in doubt, contact us and we’ll help you find the right product.
