4707/4709/4515 Drive Axle Spindle
Our most popular model, the 4707/4709/4515 Drive Axle Spindle, is part of our highway and dump truck spindle series, designed specifically for trucks with either a 4707, 4709 or 4515 brake assembly.
The 4707/4709/4515 spindle features our patented bolt-on design, industry-standard 1040 unalloyed steel construction, and undergoes our unique induction heat treatment process for maximum strength and wear resistance. Designed to exceed OEM standards, it is compatible with Meritor, Dana Spicer, and Eaton Axles, making it a versatile and dependable solution for maintaining truck efficiency and safety.
Every 4707/4709/4515 Drive Axle Spindle is inspected, carefully packed, and shipped with all the essential components for a fast and easy installation, including: spindle, sleeve, gasket, ABS mount, and bolts.
Tools required for installation are not included. For a complete list of required tools, see the “Required Tools” section below.
In stock
| Type: | Drive axle spindle |

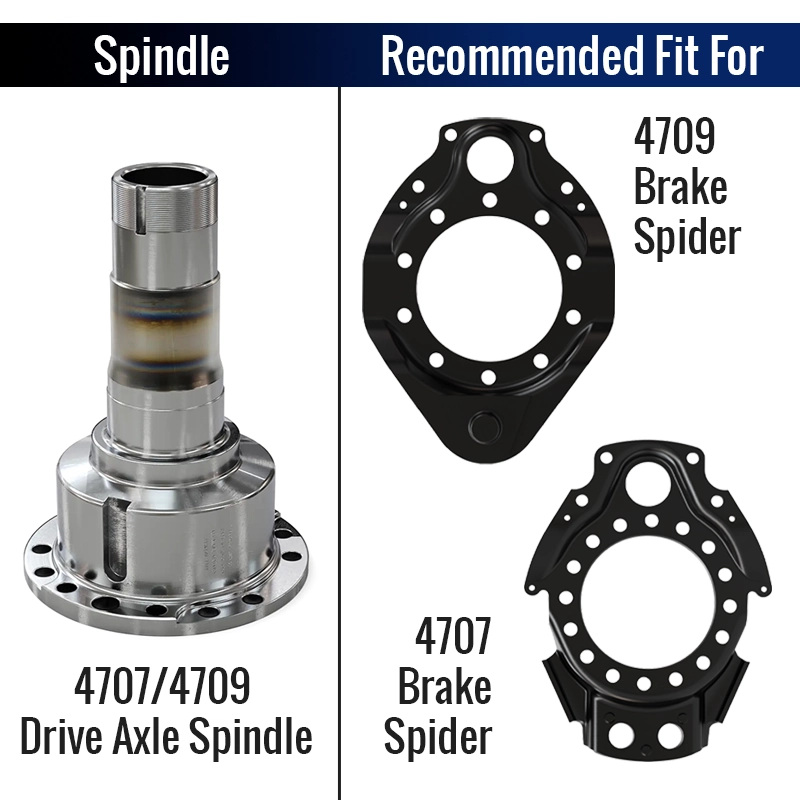

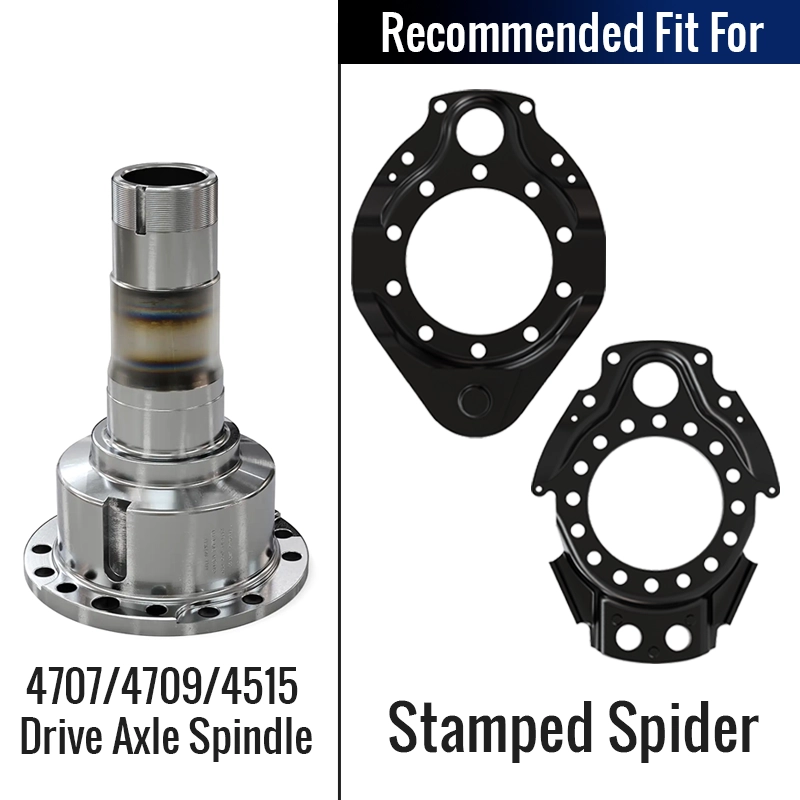

| Recommended Fit For: | 4707, 4709 or 4515 brake spider |
| Heat Treatment: | Yes |
| Weight: | 48 lbs |
| Warranty: | 1 Year Limited Warranty |
| Compatible Parts: | Bearing Set 401 (572/580) cup and bearing, Bearing Set 403 (594A – 592A), Set 430 (mostly used with pre-set hub), Set 429 (mostly used with pre-set hub), National seal 37003A, Pro-Torque Lock nut 449-4973 |
In stock
Description
Our highway and dump truck spindles are a true testament to the grit and rugged durability of our products. Built for the long haul, our spindles have kept 80-ton dump trucks rolling strong across North America, proving their reliability mile after mile.
Forged from a solid block of unalloyed 1040 steel, the 4707/4709/4515 spindle undergoes multiple precision machining stages to ensure a perfect fit with axle bearings and wheel hubs, reducing vibration and improving ride quality.
Induction Heat Treatment – The bearing areas receive focused heating for maximum durability, while the entire spindle undergoes a hardening process to withstand high stress loads and demanding terrains.
Optimized Load Support – The sleeve is designed to fit perfectly within the axle housing, providing a reinforced mounting point that prevents axial movement.
Sealed Against Contaminants – The gasket ensures long-term protection, preventing dirt, moisture, and road debris from infiltrating critical components.
ABS Sensor Alignment – The ABS mount allows for precise sensor positioning, ensuring accurate braking performance that meets modern safety standards.
Secure Installation – The included bolts provide firm attachment to the axle housing, ensuring stability under operating stress.
Whether you’re performing routine maintenance or emergency repairs, the 4707/4709/4515 Drive Axle Spindle kit delivers a perfect balance of durability, precision, and ease of installation.
Required Tools
Having the right tools and equipment is key to a successful installation. This list covers essential equipment that most shops already have, but we recommend taking a moment to ensure everything is on hand before beginning.
Safety Equipment
- Safety glasses
- Ear plugs
- Welding helmet and gloves
- Face shield
Hand Tools
- Torque wrench
- 2 vise grips
- Sledge hammer
- Chipping hammer
- 21 mm chrome socket, 1/2” drive
- 15/16” wrench
- 15/16” ratchet, 1/2” drive
Power Tools & Accessories
- 1/2” impact wrench
- Pencil grinder
- Air blow gun
- 5” grinder with wire wheel, cutting and grinding disks
- MIG or stick welder
- 7018 welding rods
- Shop fan
Specialized Tools
- Stemco Seal Driver with tube
- Acetylene and oxygen tank with cutting and heating torch
Lubricants, Fluids, & Paints
- Red-Tac EP2 Grease
- Cutting fluid
- Brake cleaner
- Black rust paint
Additional Tools Available in Our Store
Problems Caused by a Damaged Axle Spindle
Damaged spindles can create serious operational challenges, affecting your vehicle’s performance, safety, and cost-efficiency. Identifying and addressing these issues early is crucial for maintaining a safe and efficient fleet.
Steering Problems: A compromised axle spindle can throw off wheel alignment, making it difficult to maintain straight-line stability. Drivers may experience increased steering effort, unexpected drifting, and reduced handling precision—all of which put additional strain on driver focus and safety.
Unusual Noises: One of the first warning signs of a failing axle spindle is unusual noise from the wheel area. Clicking, grinding, or humming sounds often indicate excessive friction and improper wheel support. Ignoring these early warnings can lead to serious internal component wear and costly repairs.
Uneven Tire Wear: A faulty axle spindle causes irregular tire wear, reducing tire lifespan and compromising road grip. This leads to premature tread wear, higher fuel consumption and reduced vehicle control.
Brake System Malfunction: A damaged spindle can misalign the wheel hub, leading to uneven brake pad wear and compromised braking performance. This increases stopping distances, heightens safety risks, and puts additional stress on the entire braking system.
Will this fit my truck?
Please verify your spider plate type
Still not sure if this will fit your truck?
Simply identify your truck’s brake spider model and select the corresponding spindle model. Here are a list of parts compatible with this spindle:
- Bearing Set 401 (572/580) cup and bearing
- Bearing Set 403 (594A – 592A)
- Set 430 (mostly used with pre-set hub)
- Set 429 (mostly used with pre-set hub)
- National seal 37003A
- Pro-Torque Lock nut 449-4973
If you’re still in doubt, contact us and we’ll help you find the right product.
4707/4709/4515 Drive Axle Spindle – Frequently Asked Questions
What is included with the drive axle bolt-on spindle?
Each 4707/4709/4515 Drive Axle Spindle is shipped fully equipped for installation. The package includes: spindle, sleeve, gasket, ABS mount, and bolts.
For information regarding the tool required, refer to the “Required Tools” section tab.
